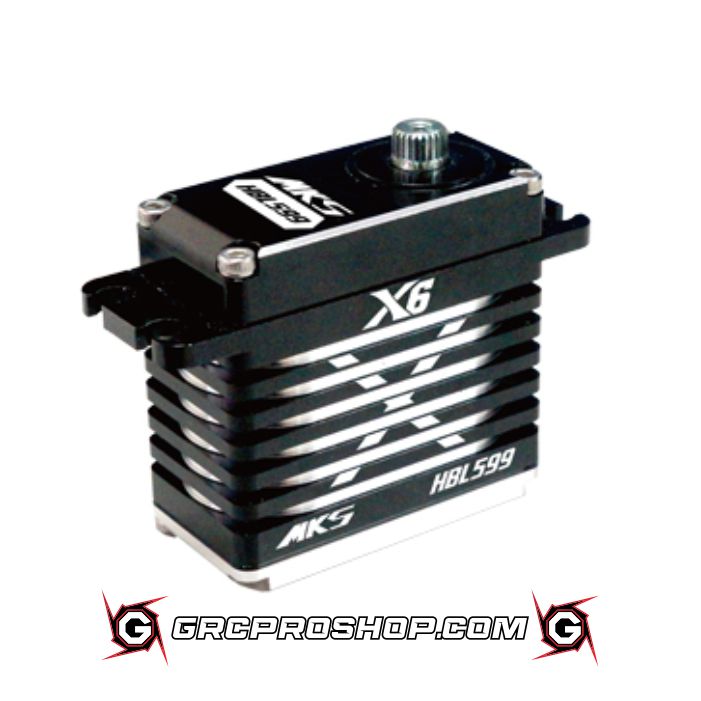

MKS Servos MKSHBL599 – X6 Brushless Titanium Gear High Torque Digital Servo (High Voltage)

Description

MKS Servos MKSHBL599 – X6 Brushless Titanium Gear High Torque Digital Servo (High Voltage)

The MKS X6 HBL599 Brushless Titanium Gear High Torque Digital Servo is perfect for 1/10 to 1/5 scale applications that require stump pulling torque, low power consumption and high speed, combined with the flexibility of high voltage circuitry in a standard size package.

Features:
Ideal for 1/10 monster truck, 1/8 truck and buggy and 1/5 scale applications
Ultra torque, incredible efficiency, and low power consumption
Smoother, faster, more efficient for top level performance
Chrome-Titanium gears for precision and durability
.11 / 416.62 oz-in @6.0V and .08 / 583.27 oz-in @ 8.2V!
Standard dimensions make it perfect for vehicles that can benefit from a high quality servo
CNC Machined aluminum case for exceptional cooling
HD 4096 Resolution
0.0008ms Dead Band
Superior Holding Torque
Japanese Brushless Motor

Torque:
@6.0V: 416.62 oz-in (30 kg-cm)
@7.4V: 527.72 (38 kg-cm)
@8.2V: 583.27 (42 kg-cm)

Speed:
@6.0V: 0.11 s
@7.4V: 0.09 s
@8.2V: 0.08 s

Other Specs
Weight: 73.12 g
Dimension: 40x20x38.5mm
Working Voltage: 3.5 ~ 8.4 V (2S LiPo unregulated)
Working frequency: 1520?s / 333Hz
Dead Band: 0.0008 ms (Default)
Bearing: 2BB
Motor: Japan High Quality Brushless Motor
Gear: Chrome-Titanium alloy gear
