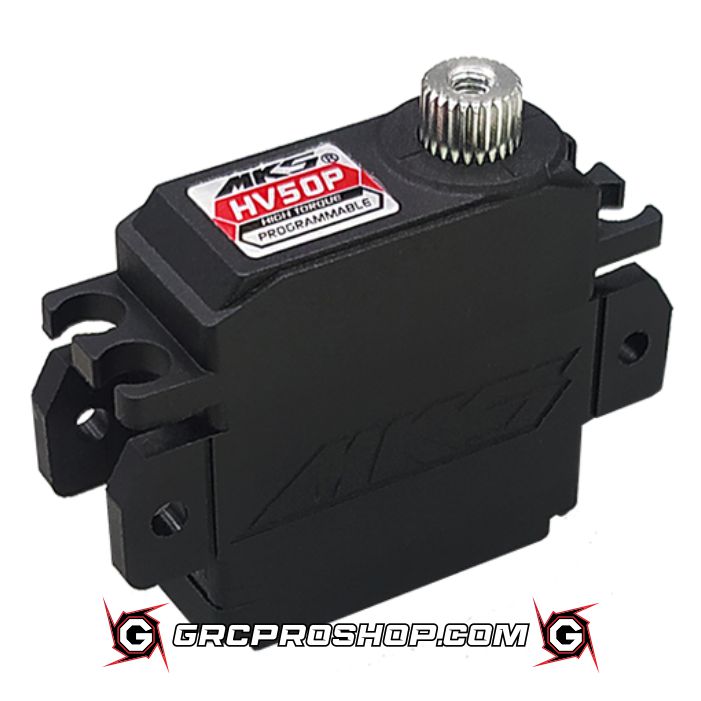

MKS Servos MKSHV50P – 1/12 Metal Gear High Voltage Servo

Description

MKS Servos MKSHV50P – 1/12 Metal Gear High Voltage Servo

MKS Servos HV50P 1/12 Metal Gear High Voltage Servo. Designed to fit most 1/12 applications this servo is an excellent addition for your next build. This high performance servo is capable of handling up to 8.4V and boasts an impressive 0.071 sec/60° speed and 8.3 kg-cm (115.2 oz/in) of torque.

Features:
Uses Pulse Width Control (PWM)
High quality coreless motor
Dual ball bearing
Full metal gears
Specifications:
Voltage: 4.0-8.4V DC

Torque:
6V: 84.7 oz/in (6.1 Kg/cm)
7.4V: 104.1 oz/in (7.5 Kg/cm)
8.4V: 115.2 oz/in (8.3 Kg/cm)

Speed:
6V: 0.097 sec/60°
7.4V: 0.079 sec/60°
8.4V: 0.071 sec/60°

Other Specs:

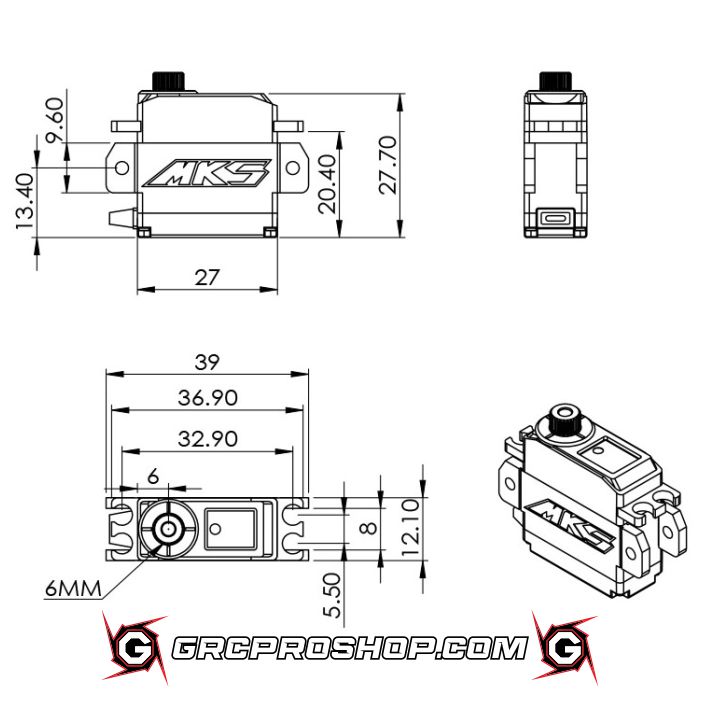

Dimensions: 27×12.1×27.7mm
Weight: 18.1g
Working Frequency: 1520s / 333Hz
Dead Band: 0.001ms (Default)
Temperature Range: -10 to + 60 Degree C
